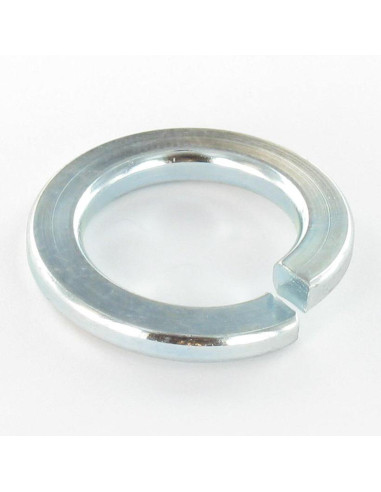

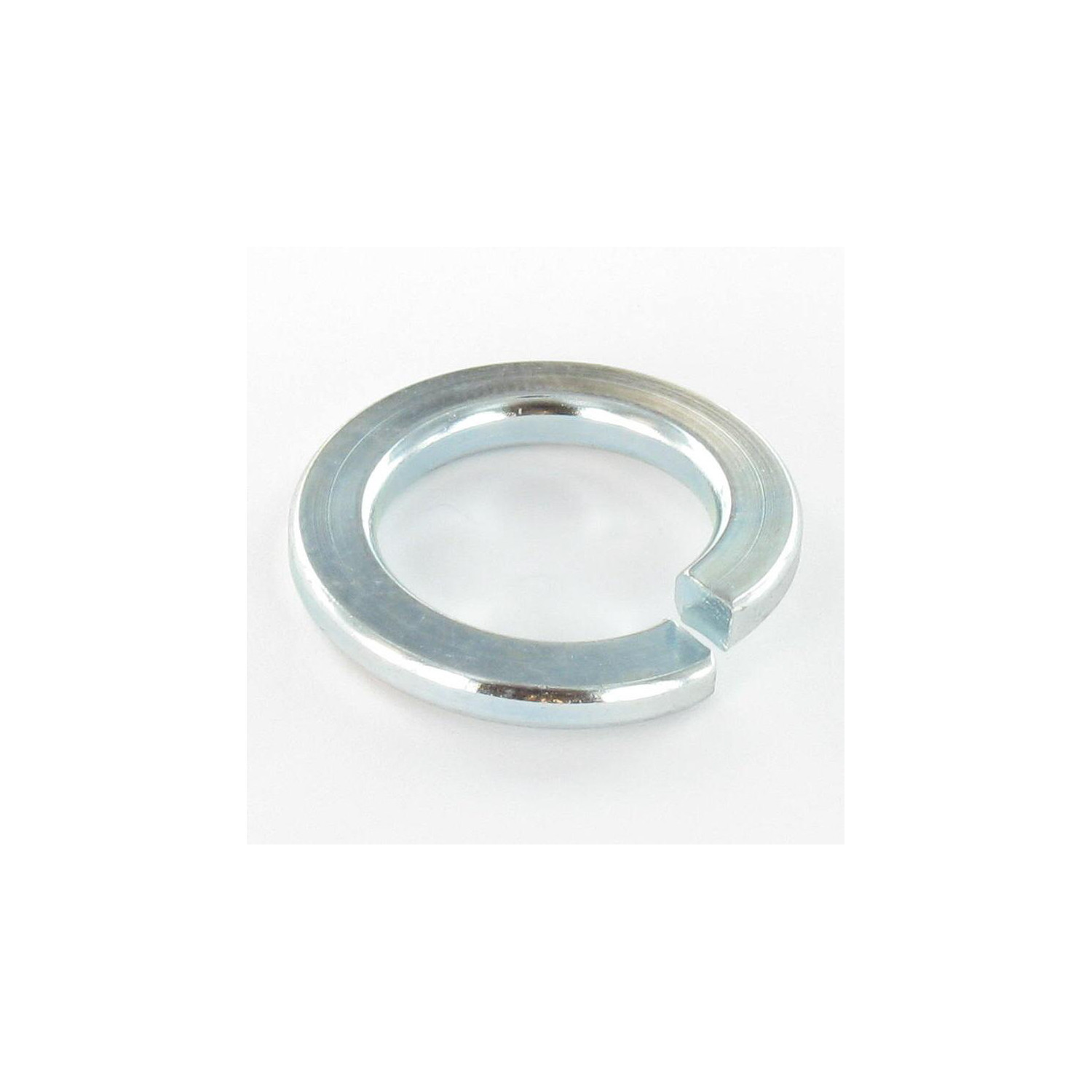

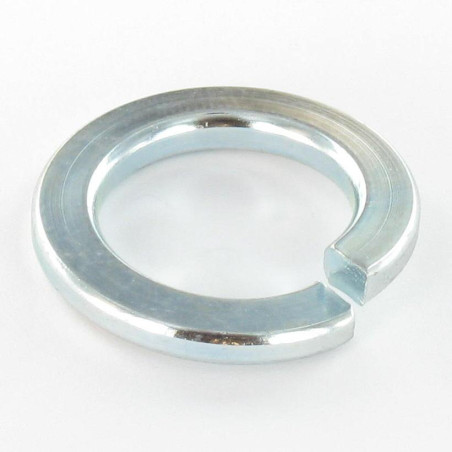

1 x Arandela Grover para Tornillos M8 Acero cincado blanco

Arandela Grover para Tornillos M8 Acero cincado blanco
Diã¡Metro = M8, Grosor = MM, Revestimiento De Superficie = Cincado blanco, Material = Acero, Norma = DIN 127 B

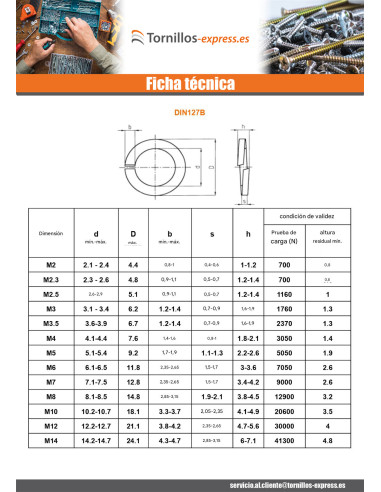

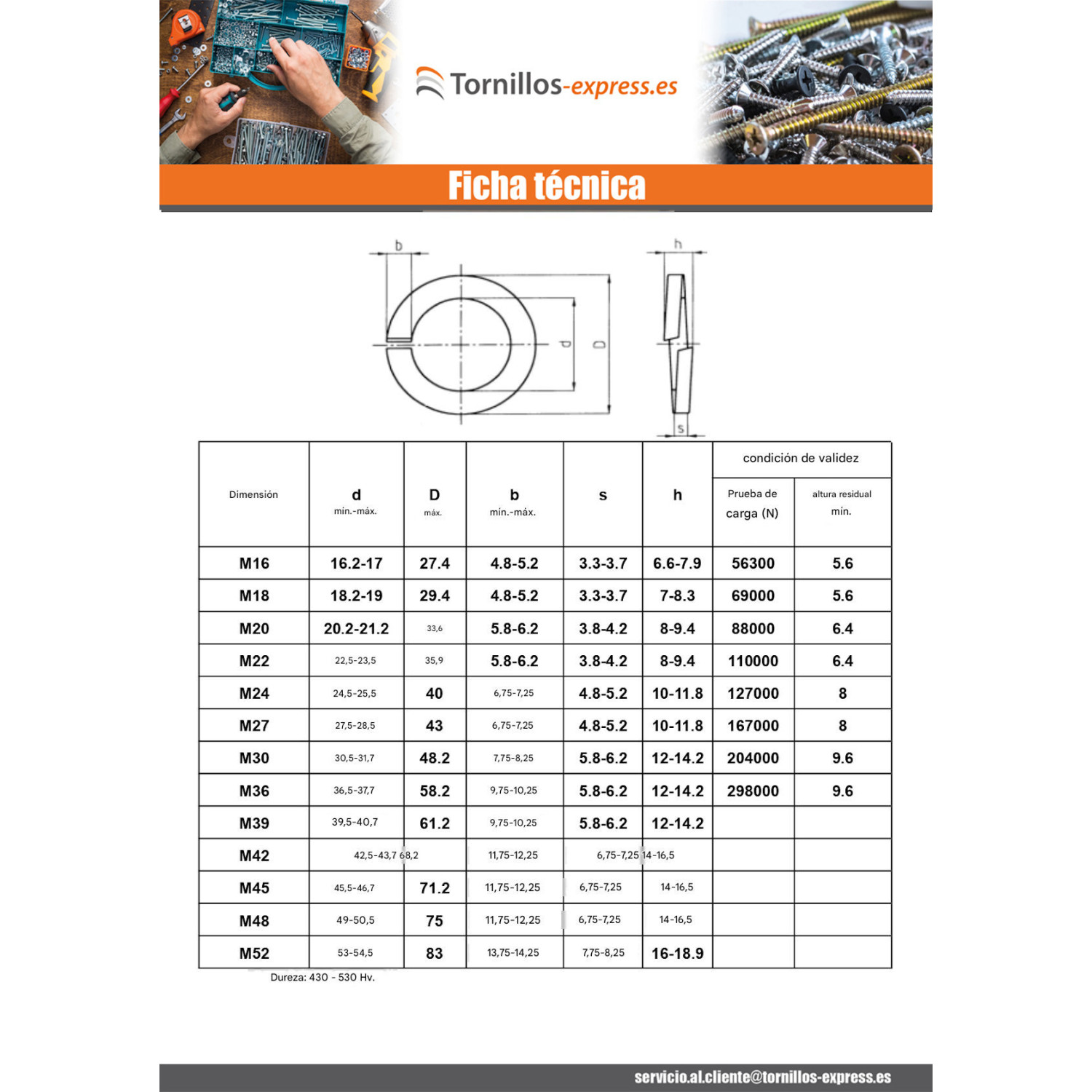

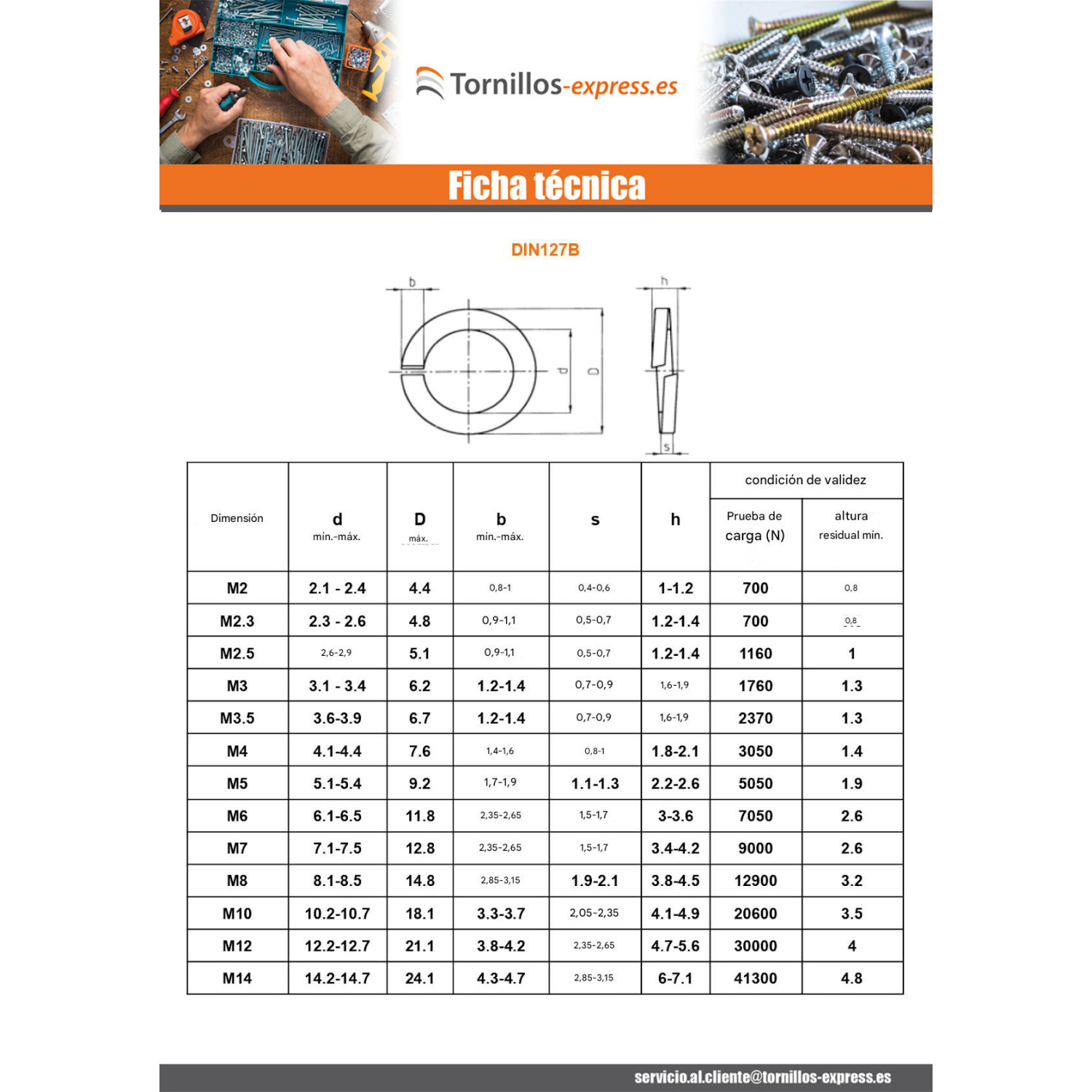

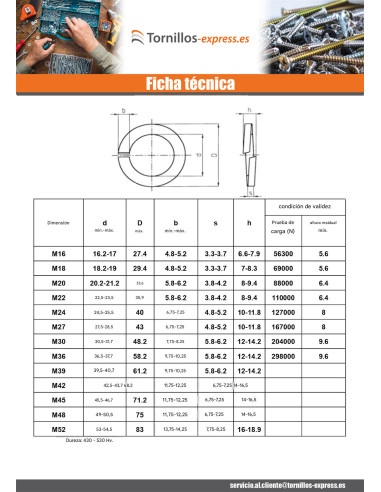

Guía dimensional

Diámetro	M3	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20	M24	M27	M30	M36	M39	M42	M45	M48
Diámetro interior	3.1	4.1	5.1	6.1	7.1	8.1	10.2	12.2	14.2	16.2	18.2	20.2	24.5	27.5	30.5	36.5	39.5	42.5	45.5	49
Diámetro exterior	6.2	7.6	9.2	11.8	12.8	14.8	18.1	21.1	24.1	27.4	29.4	33.6	40	43	48.2	58.2	61.2	68.2	71.2	75
Espesor	0.8	0.9	1.2	1.6	1.6	2	2.2	2.5	3	3.5	3.5	4	5	5	6	6	6	7	7	7
